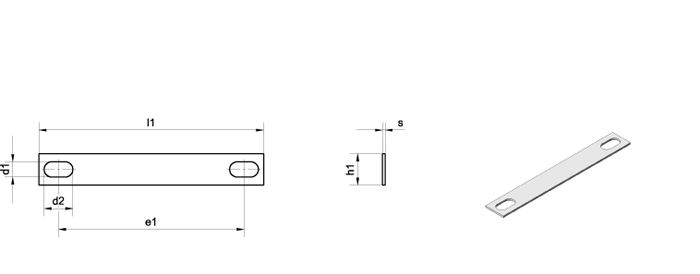

Größe | für Typ | Ka. | Art.-Nr. | magn. Achse | d1 | d2 | e1 | h1 | l1 | s | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
ver. | hor. | |||||||||||
EI 42 | 0 | 63170.7 | x | x | 3,6 | 7,0 | 26,0 | 6,0 | 35,0 | 0,75 | ||
EI 48 | 0 | 63171.8 | x | x | 3,6 | 7,0 | 31,0 | 6,0 | 40,0 | 0,75 | ||
EI 60 | 0 | 63173.0 | x | x | 3,6 | 7,0 | 40,0 | 9,0 | 50,0 | 0,75 | ||
EI 66 (*) | 0 | 63174.1 | x | x | 4,8 | 9,0 | 43,0 | 9,0 | 55,0 | 1,0 | ||
EI 75, EI 78 | 0 | 63175.2 | x | x | 4,8 | 9,0 | 50,0 | 9,0 | 62,5 | 1,0 | ||
EI 96 | 0 | 63178.5 | x | x | 5,8 | 11,0 | 62,5 | 12,0 | 80,0 | 1,0 | ||
EI 106 | 0 | 63179.6 | x | x | 5,8 | 11,0 | 71,0 | 12,0 | 86,0 | 1,5 | ||
EI 130 | 0 | 63181.0 | x | x | 7,0 | 13,0 | 88,0 | 15,0 | 105,0 | 2,0 | ||
EI 150N | 0 | 63182.1 | x | x | 8,0 | 15,0 | 103,0 | 15,0 | 123,0 | 2,0 | ||
EI 170 | 0 | 63183.2 | x | x | 8,0 | 15,0 | 119,0 | 20,0 | 140,0 | 2,5 | ||
EI 195 | 0 | 63184.3 | x | x | 11,0 | 18,0 | 155,0 | 25,0 | 180,0 | 3,0 | ||
EI 231 | 0 | 63185.4 | x | x | 13,0 | 22,0 | 178,0 | 30,0 | 209,0 | 3,0 | ||
Toleranzen nach DIN 7168-mittel Werkstoff: St 1203 oder St 37, galvanisch verzinkt. |
